REXROTH OIL CONTROL閥04.05.01.00.85-Z規格描述
Technical data | |
Pressure min. - max. | 10 - 350 bar (145 - 5000 psi) |
Flow range | see “Range of total flow” table |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Division ratio | 50% - 50% |
Weight | 0.28 kg (0.62 lbs) |
Cavity | CA-10A-4N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit1) | Code: RG10A4010530100 |
material no: R901111373 | |
Fluids | Mineral-based or synthetics with lubricating properties |
at viscosities of 10 to 500 mm2/s (cSt) | |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | See data sheet 18350-50 |
1) Only external seals for 10 valves
Slippage (tolerance) from theoretical divided flows: ±5% to ±10%, depending from inlet flow (see diagram).
N.B. Slippage is lowest toward upper limit of nominal range.

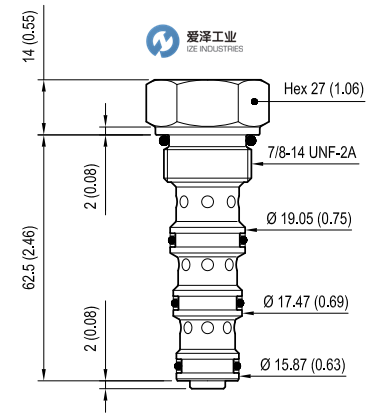

REXROTH OIL CONTROL閥04.05.01.00.85-Z外觀尺寸圖

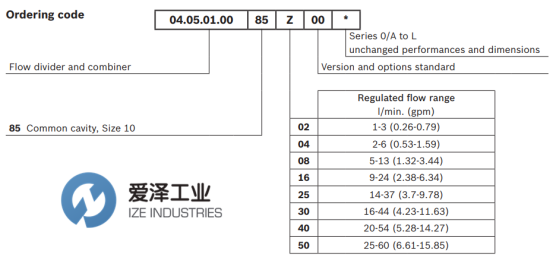

REXROTH OIL CONTROL閥04.05.01.00.85-Z型號解析
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL 040501008502000 R901096072
REXROTH OIL CONTROL 040501008504000 R901096079
REXROTH OIL CONTROL 040501008508000 R901096080
REXROTH OIL CONTROL 040501008516000 R901096083
REXROTH OIL CONTROL 040501008525000 R901096085
REXROTH OIL CONTROL 040501008530000 R901096086
REXROTH OIL CONTROL 040501008540000 R901096087
REXROTH OIL CONTROL 040501008550000 R930000091
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥 040501008516000 R901096083的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
REXROTH OIL CONTROL閥04.05.01.00.85-Z 040501008516000技術數據
