WHITTET-HIGGINS防松螺母BH系列產品介紹

這一系列的BEARHUG鎖緊螺母，帶有尼龍環，是精密自鎖螺母的中流砥柱。它的設計與N和a鎖緊螺母的軸尺寸相同，但具有自鎖和超精密的附加特性，其中它已成為精密軸承和動力傳動總成的最重要部件。

這些螺母的支承面相對于螺紋中徑的跳動，一圈總指示器讀數不大于0.0004英寸（對于尺寸00到04），對于尺寸05到20，.0006英寸對于尺寸21到40.0008英寸。

閥座表面在40微英寸范圍內。

This series of BEARHUG Locknuts, with a nylon collar, is the mainstay of the precision self-locking nuts. It is designed for the same shaft dimensions as are the N and AN locknuts, but with the added features of self-locking and super precision wherein it has become a most important component for precision bearing and power transmission assemblies.

The runout of the bearing face of these nuts to the pitch diameter of their threads have a one revolution total indicator reading no greater than: .0004 inches for sizes 00 through 04, .0006 inches for sizes 05 through 20, .0008 inches for sizes 21 through 40.

Seating surface is within 40 micro-inches.

WHITTET-HIGGINS防松螺母BH系列其他型號：

WHITTET-HIGGINS BH-00

WHITTET-HIGGINS BH-01

WHITTET-HIGGINS BH-02

WHITTET-HIGGINS BH-03

WHITTET-HIGGINS BH-04

WHITTET-HIGGINS BH-05

WHITTET-HIGGINS BH-06

WHITTET-HIGGINS BH-095

WHITTET-HIGGINS BH-07

WHITTET-HIGGINS BH-08

WHITTET-HIGGINS BH-09

WHITTET-HIGGINS BH-10

WHITTET-HIGGINS Locknuts NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。

如果有任何關于WHITTET-HIGGINS防松螺母BH-08的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for WHITTET-HIGGINS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.

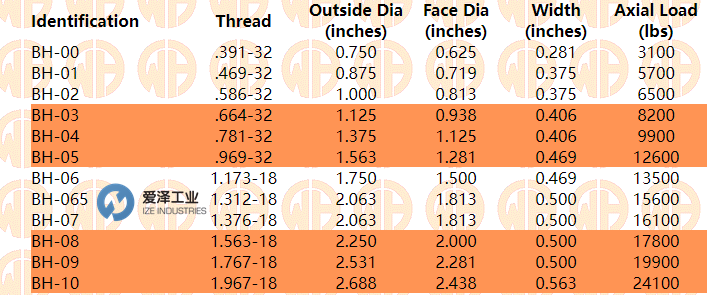

WHITTET-HIGGINS防松螺母BH-08產品參數
