PIXSYS控制器ATR121系列技術參數
Box | 32 x 74 (front panel) x 53 mm |
Power supply | 12...24 VAC / VDC or 230VAC ±15% 50/60 Hz- (galvanical isolation 2500V) |
Power consumption | 2,6 VA (code AD) 4,4 VA (code B) |
Display | 3 digits, 0,56” red + 3 signaling leds |
Operating conditions | Temperature 0-45 °C, humidity 35..95 RH% |
Material | Box:polycarbonate; front panel: ABS UL94V0 self-extinguishing |
Weight | Approx.100 g |
Sealing | Front panelIP54, Box IP30, Terminal blocks IP20 |
Quick set-up options | Memory Card, software LABSOFTVIEW |
Inputs | |
1 analogue | Res. 16 bit, selectable for TC type K, S, R, J, (automatic compensation of the cold junction o..50°C, ± 0,2% F.S. ± 1 Digit F.S.), thermoresistance PT100, PT500, PT1000, Ni100, PTC1K. NTC10K, (?3435K), process signals 0..10V (40000 points), 0/4..20mA (30000 points), potentiometer 6K?, 150K? (40000 points) |
Sampling time | 66ms (frequency 15 Hz) |
Outputs | |
2 relays | 1 Relay 10A/8A - 250 VAC resistive charge + 1 Relay 5A - 250 VAC resistive charge |
1 digital | 8 VDC - 20 mA (code B) - 12..35 VDC - 30 mA (code AD) |
1 auxiliary | 8 VDC - 20 mA (code B) - 12..35 VDC - 30 mA (code AD) for sensor supply |
Software features | |
Control algorithms | ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportioned, Dead band |
Tuning | Manual or automatic |
Operating modes | Visualizer, Single setpoint, Double setpoint (selection by parameter) |
Data protection | Lock of control / alarm setpoint - Access to parameters by password |
Alarm modes | Absolute / Threshold, band, High / Low deviation. Alarm with optional manual reset. |
Double P.I.D. | Heating / Cooling P.I.D. |
Open / Close logic | Open / Close logic for motorized valves |
Setpoint | 2 setpoints |
Ordering codes | |
ATR121-AD | 1 Analogue Input + 2 Relays 8 A + 1 SSR 12VDC / Supp. 12..24 VAC/DC |
ATR121-B | 1 Analogue Input + 2 Relays 8 A + 1 SSR 12VDC / Supp. 230 VAC |
PIXSYS控制器ATR121系列介紹
這款緊湊型 PID 控制器具有高度可配置性。模擬量輸入可編程，適用于溫度傳感器（電阻溫度計、熱電偶），也適用于壓力變送器、濕度和流量傳感器。
加熱-冷卻 PID 控制算法經過優化，既適用于溫度調節，也適用于壓力和流量控制等快速瞬時過程。ATR121的軟件功能包括用于工業 HVAC 和計量系統中閥門控制的開關邏輯。
控制器輸出始終可自由選擇，例如命令/多種報警模式/事件。
This compact PID controller is highly configurable. Its programmable analog inputs are suitable for temperature sensors (resistance thermometers, thermocouples), as well as pressure transmitters, humidity, and flow sensors.
The heating-cooling PID control algorithm is optimized for both temperature regulation and fast transient processes such as pressure and flow control. The ATR121's software functionality includes switching logic for valve control in industrial HVAC and metering systems.
Controller outputs are always freely selectable, such as commands, various alarm modes, and events.
PIXSYS控制器ATR121系列其他常用型號：

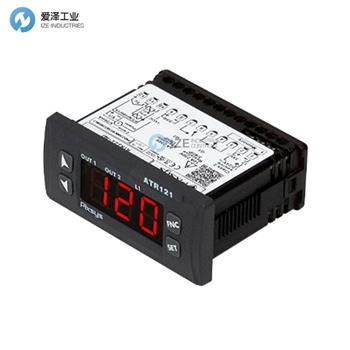

PIXSYS ATR121-B
PIXSYS ATR121-AD
PIXSYS Controller NEW + ORIGINAL+ ONE YEAR WARRANTY
